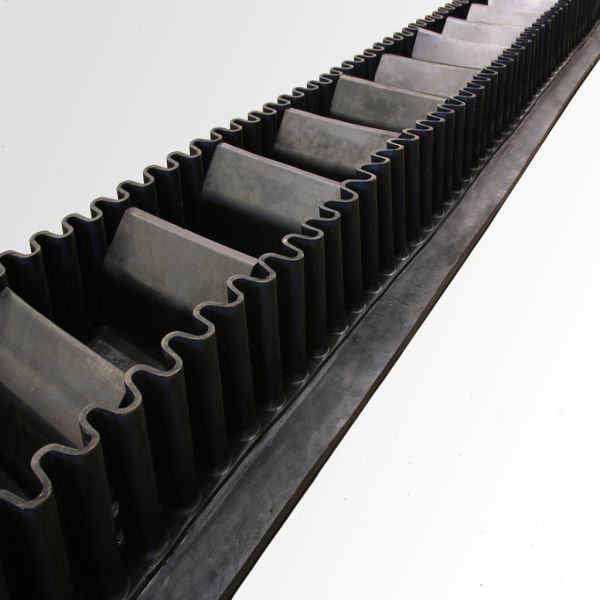

Sidewall conveyor belt

Product description:

Sidewall conveyor belt is one of the most effective ways of elevating materials in a confined space, the economy is achieved by single belt operation,wide range material can be handled, less space requirement,no transfer point, low maintenance and big capacity. Corrugated sidewall belt can be designed into a set of complete transportation system according to application.

Specification of Sidewall Belt

Base belt width: 500~2200mm

Height of sidewall: 60~630mm

Height of cleats: 50~600mm

Hot Vulcanization Assembling
Sidewall, cleat, and base belt are jointed through twice low-temperature hot vulcanization, which ensures high adhesion value, flatten, and no fall off. And the adhesion value won't be influenced by high-temperature material.

The  sidewall conveyor belt structure consists of three parts: base belt, skirt edge, and cleats. The  sidewall conveyor belt is an ideal choice for efficient up  and down transportation of bulk goods.

Technical Data for Base belt, Cleat and Sidewall

Advantages of Sidewall conveyor belt :

increased productivity;

high throughput;

no loss of cargo;

the ability to use on conveyor installations with different angles of inclination;

economical moving area;

the ability to use in various industries, including food;

adaptation to the process of transporting goods at an angle.

Application

Coal and sawdust power plants;

Underground mining (coal and ore);

Vertical shaft transportaiton for tunnels and underground;

 mining Steel industry;

Ship loading and unloading;

ship to ship loading;

Sand Preparation in Foundry;

Silo feeding;

 Inclined conveying in open-pit mining;

Waste recycling; soil purification, and water treatment;

Handling large amounts of materials in horizontal paths
